Lineage and impact screen — where the number came from and what breaks

The /linhagem screen — the workspace map, a dashboard's lineage, a table's impact analysis, and certification — with the literal label of each tab, button, and badge.

On this page (7)

Interface inventory: the text here is the text on screen.

Where it is: menu Data → Lineage (address /linhagem). The menu shows this screen to the workspace owner.

Title Lineage and impact, subtitle "Where each number came from and what breaks if you change a table." The map is built from each visual's SQL — it isn't a hand-drawn diagram, it's what is actually running.

The screen answers two questions everyone asks someday:

  • "Where did this dashboard number come from?" → Map tab
  • "If I change this table, what stops working?" → Impact tab

The three tabs#

TabWhat it shows
MapThe Workspace map (pipelines → tables → dashboards and reports) and a dashboard's lineage.
ImpactWhat depends on a table: dashboards, reports, tables, and pipelines.
CertificationThe endorsement of each dashboard and report: Certified, Promoted, or Not endorsed.

Expand map gives the diagram the whole screen (it becomes Collapse map).

Find out where a number came from#

  1. 1. Open the Map tab

    In Data → Lineage, stay on the Map tab.

  2. 2. Choose the dashboard

    In the Where did this number come from? block, choose the dashboard and click View lineage.

  3. 3. Follow the path

    The screen lists the dashboard's Visuals, the Tables that feed each one, and the Pipelines behind them. The open dashboard link takes you to the dashboard.

If the dashboard has no visual with SQL, the screen warns: "This dashboard has no visual with SQL — nothing to trace."

Lineage Map tab: the Workspace map with pipelines, tables, and dashboards, and the Where did this number come from? block with the View lineage button

Check the impact before changing a table#

  1. 1. Open the Impact tab

    The block is called If I change this table, what breaks?

  2. 2. Choose the table

    In Choose a table…, select the table you're going to change.

  3. 3. Click Analyze impact

    The answer comes in four lists: Affected dashboards, Affected reports, Derived tables, and Pipelines to review.

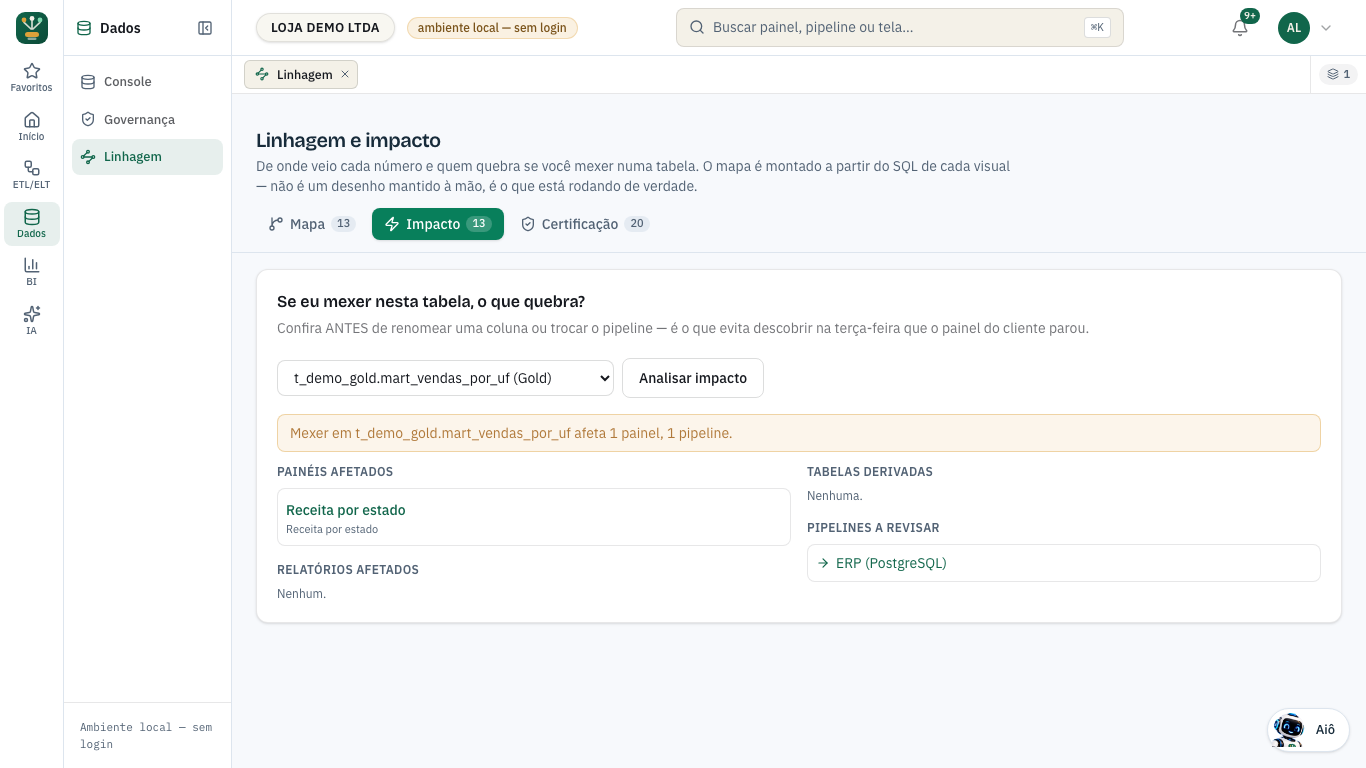

Lineage Impact tab after Analyze impact: Affected dashboards, Affected reports, Derived tables, and Pipelines to review

Do it before, not after

The screen itself recommends: "Check BEFORE renaming a column or changing the pipeline — it's what keeps you from finding out on Tuesday that the client's dashboard stopped."

Mark what's official (Certification)#

On the Certification tab, each dashboard and report has a selector with Not endorsed, Promoted, and Certified. The badge appears in the dashboard list and at the top of the dashboard — so readers know which number is the official one. Only the workspace owner endorses.

When the screen is empty#

  • Nothing to map yet — "Create a pipeline and a dashboard with visuals that read from the datalake — the lineage shows up on its own."
  • On the Impact tab: No tables mapped yet — "Impact analysis depends on the map: publish a pipeline with tables in the datalake and come back here."
