Connect your first source

The four steps of the connection wizard — System, Address and password, Test, and Done — with a screenshot of each, what the test proves, and what saving doesn't do.

On this page (13)

What you'll do#

Register access to a system (for example, your ERP's database) and get it ready for a pipeline. The connection stores the address and the password (encrypted); the pipeline is what brings in the data using that access.

Registration has four steps, always in this order:

#StepWhat you do in it
1SystemChoose where your data lives (Postgres, MySQL, SQL Server, Oracle, and other databases).
2Address and passwordFill in the server address, database name, user, and password. The connection name comes suggested.
3TestClick Test now and read the result in one sentence.
4DoneReview and save. The password isn't shown.

The pipeline points to the connection, it doesn't copy the password

Changing the password in one place applies to every pipeline that uses the connection.

Before you start#

  • Log in to the right account and check the company/workspace shown in the app.
  • You need to be the workspace owner: ETL/ELT → Connections is an owner area.
  • Choose a source offered in the connector catalog and read its page. A connector marked Limited access may require enablement; an item marked Planned is not a usable connection yet.
  • Ask whoever is responsible for the source for access suited to the task. To read data, don't ask for system administration permissions.
  • Number of connections per plan: Starter 3 · Growth 10 · Business 30 · Scale 100 · Enterprise custom. See Plans.
  • Registering a connection doesn't start any ingestion and doesn't generate cloud cost.

If you're only going to upload a file, use the import flow — see import a file. A local file doesn't require making up a password or creating a vault.

Where it starts#

In ETL/ELT → Connections. Before creating one, look at the list: if there's already a connection to the same system, use it. Each connection shows a Status — Working, Has a problem, Never tested, or Test again.

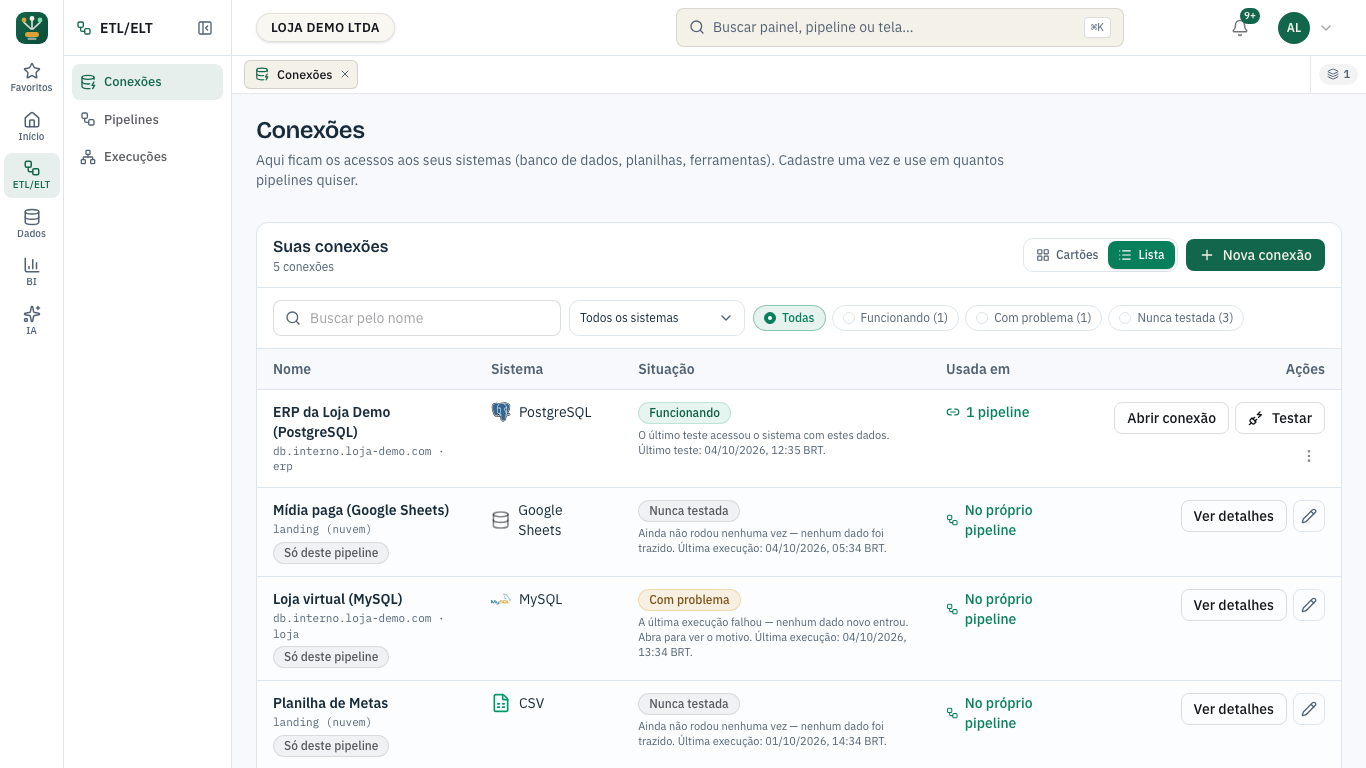

Connections screen, with search by name, the system and status filters, and the list with each connection's status in one sentence

Use New connection to open the system choice.

Step 1 — System#

Choose where your data lives. Each card says, in one line, what we'll ask for in the next step. If you arrived from a catalog card, this step is already done.

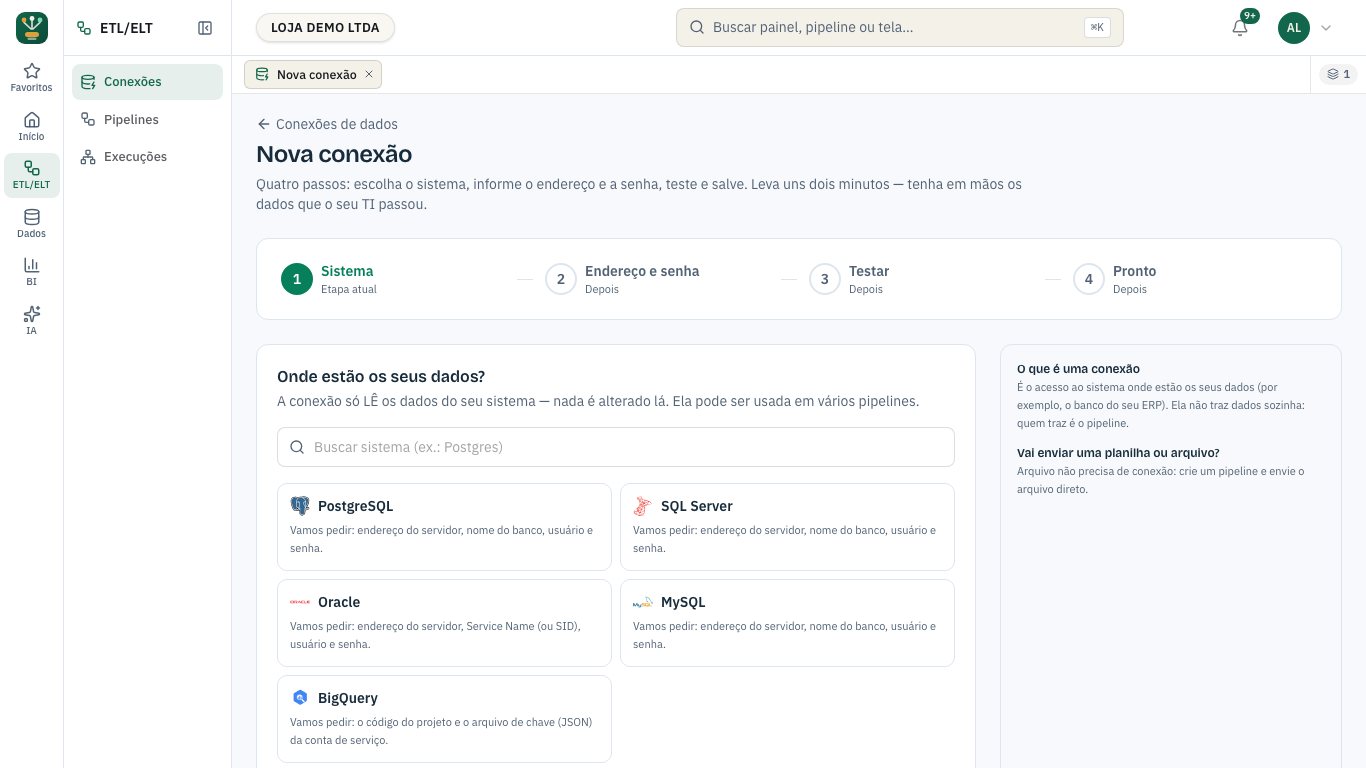

Step 1 of the wizard: the question "Where is your data?" and the systems that can be connected

Is your data in a spreadsheet? You don't need a connection: create a pipeline and upload the file directly.

Step 2 — Address and password#

Fill in what your IT team gave you. Each field has a help line with an example:

  • Server address — name or IP of the database server.
  • Port — the default is pre-filled; only change it if IT says it's different.
  • Database name, User (preferably a read-only one, created for BI), and Password.

The connection name comes suggested (system + database name); change it if you like. Never put a password or personal data in the name.

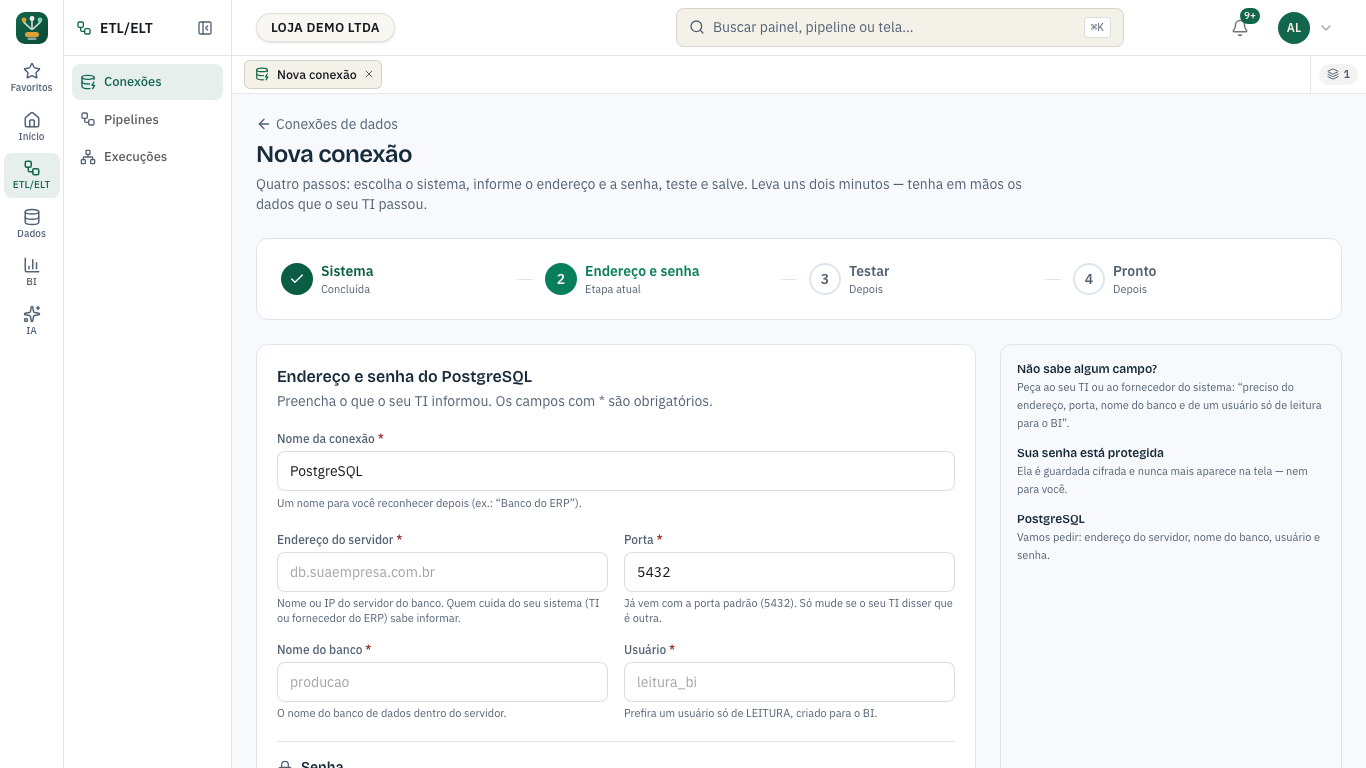

Step 2 of the wizard: suggested connection name, server address, port, database name, user, and password, each with its own help

Advanced options (collapsed) holds what usually only IT touches: schema, connection security (SSL), how we reach the database (directly over the internet, SSH tunnel, Cloud SQL, VPN). It comes with the secure default.

The password is stored encrypted and never shows on screen again — not even for you. To change it later, use Change the password.

If something goes wrong here: the field with the problem turns red, with the explanation below it and a summary at the top.

Step 3 — Test#

Click Test now. We try to log in to the system with the data provided and list the tables — nothing is changed in your system.

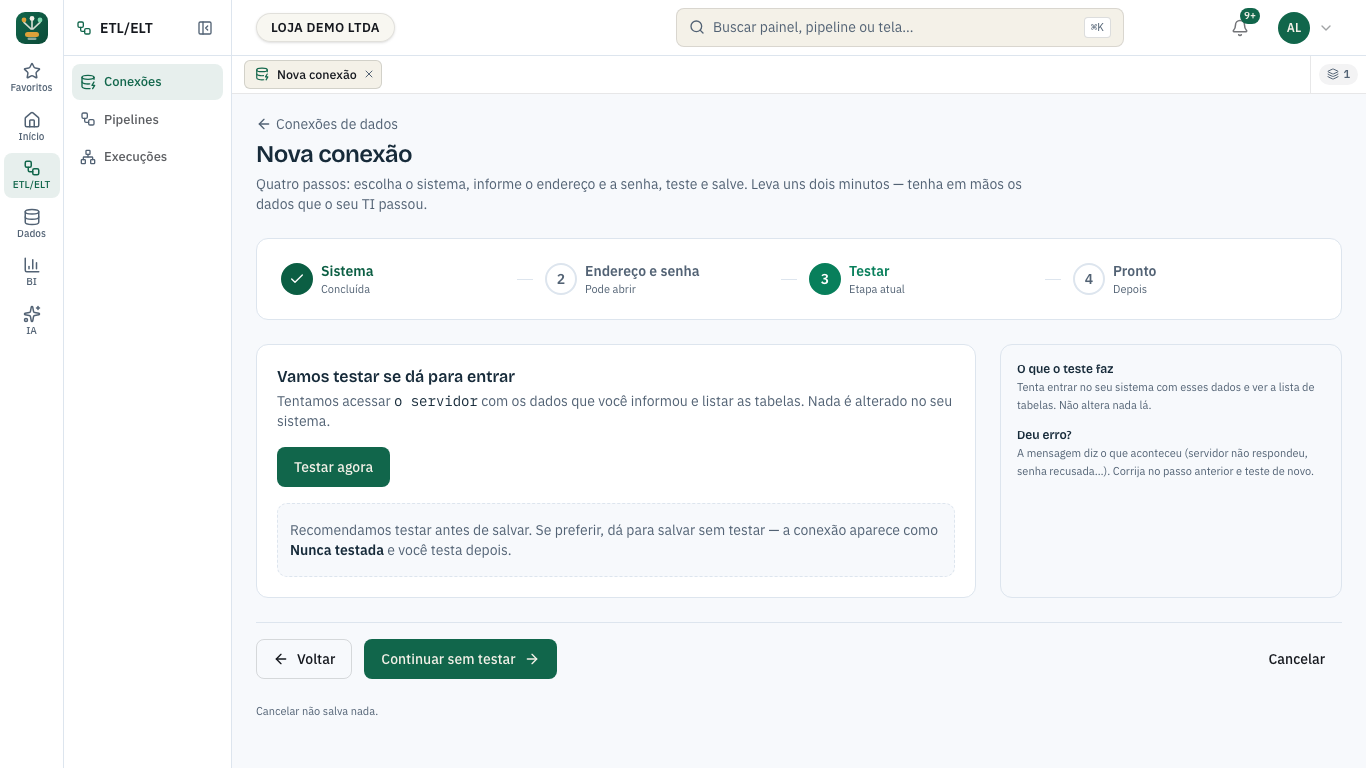

Step 3 of the wizard: the Test now button and what the test does

The result is one sentence: Connection working (with how many tables we found) or We couldn't get in, with the reason and what to do — for example, "The server didn't respond in time… ask your IT team to allow access". The per-stage detail (network, user and password, read) is under See test details (for IT).

The test is optional: Continue without testing (or Continue anyway, after a failure) saves the connection as Never tested.

Step 4 — Done#

Review the data and save. The password isn't shown, only whether it was provided.

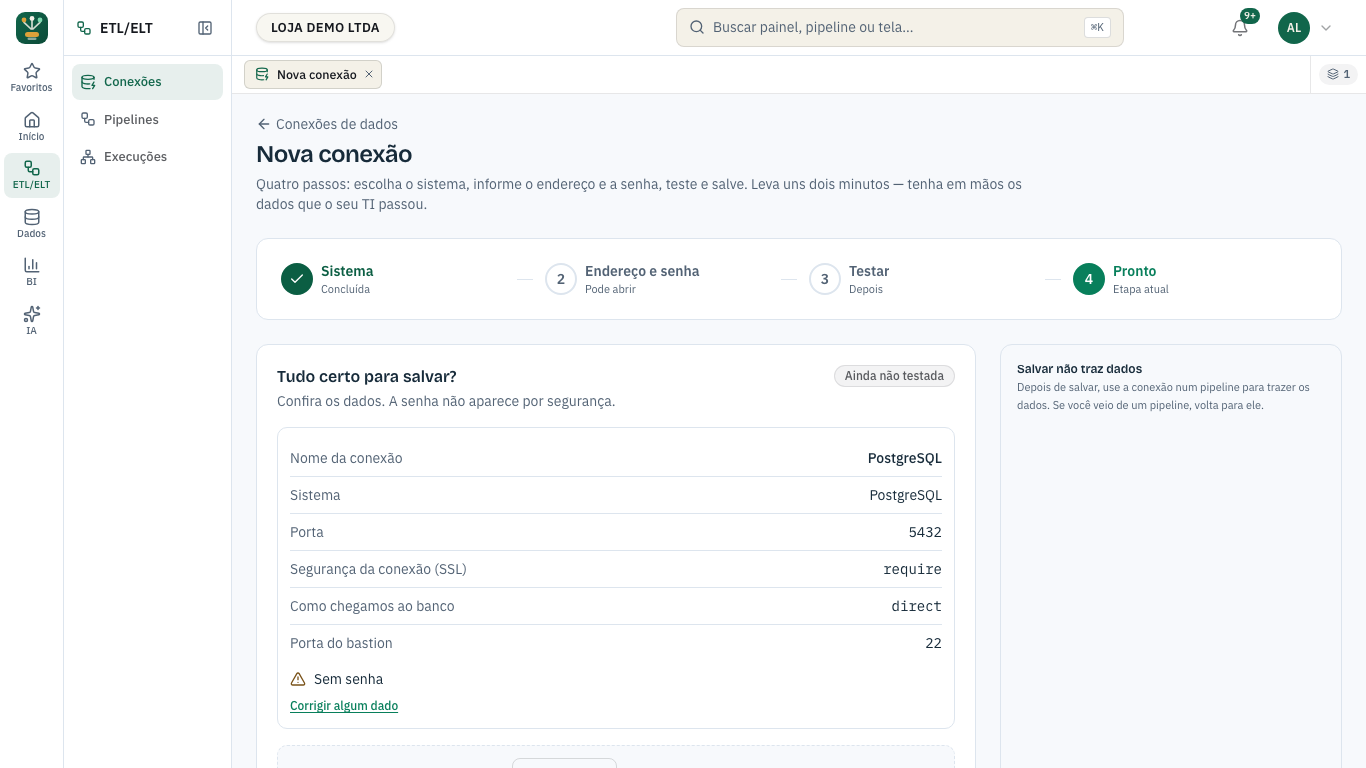

Step 4 of the wizard: the summary of what will be saved and the test badge

Use Save connection. If you came from building a pipeline, the button is Save and use in pipeline and you go back there with the connection already selected. Cancel saves nothing.

Saving doesn't bring in data: the pipeline that uses the connection does that.

The four states behind the status (for IT)#

The list shows ONE status. The connection's detail page shows the four facts it comes from — and a connection can be "Active" and never have brought in anything:

StatePossible values
RegistrationDraft · Active · Archived
ValidationValidated ✓ · Failed the test · Testing… · Validation outdated · Not tested
CredentialCredential configured · Credential expired · Credential revoked · Credential inaccessible · No credential
Last ingestionLast ingestion OK · Last ingestion failed · Ingestion running · Never ingested · No pipeline

Expected result#

You have an identifiable, authorized connection; the credential is encrypted and referenced; the test status matches what was actually verified; the ingestion state says Never ingested or No pipeline — because saving doesn't load any data.

If something goes wrong#

SymptomWhat to checkNext action
Network failedAddress, port, network mode, allowlistAllow the application server and the executor; validate with whoever manages the source
Authentication failedMethod, validity, and user chosenReplace or reauthorize the credential as the connector requires
Authenticates, but read failedPermissions on the specific schema/tableAsk only for the access you need (read-only)
Read "Not tested"Whether the connector supports that checkTreat it as not verified, not as approved
The next step doesn't openThe error summary at the top of the current stepFix the field in red
Connector unavailablePublic status on the connector pageSee connector catalog
I don't see Connections in the menuYour role in the workspaceConnections is an owner area; ask the owner for access
I hit the connection limitPlan limitArchive an unused connection or see Plans

Limits and costs#

  • Registering, testing, and saving: R$ 0 on the platform. Some external connectors charge per API call — check the connector page.
  • The number of connections is limited by the plan.
  • We don't publish registration or test times: they depend on the source and the network.

Back to the app#

Next task#

Create the pipeline that will use this connection: First ingestion. On the connection's detail page, the shortcut is Use in a new pipeline.


Last reviewed: 2026-10-03. The screenshots on this page come from the delivered version, in a demo environment with fictional data (the project seed's synthetic workspace), 1366×768 viewport. The provenance of each image — file, SHA-256, route, commit, role, and privacy review — is in the screenshot manifest e2e/baseline/galeria-v3.json. A screenshot from a local environment documents the interface; it doesn't prove execution in the cloud. No customer data, names, or credentials appear in this documentation.
