Public links and snapshots (/painel, /d, /r)

The difference between a public dashboard (/painel), an unguessable private link (/d), and an immutable report snapshot (/r).

On this page (12)

There are three public addresses in ingestia.io, and the difference between them is an exposure decision — not a technical detail. This page explains when each one appears and what it guarantees. For the sharing doors themselves (how to turn each one on), see Share the dashboard.

What each address is#

RouteWhat it isIndexingData source
/d/<slug>Private link to a dashboard — an unguessable address, "public to whoever has the link"noindex (search engines don't even enter)materialized snapshot
/painel/<slug>Public dashboard on the open web — for those who WANT to publicize itindexable and crawlablematerialized snapshot
/r/<slug>Report snapshot — the immutable public version of the reportnoindexresult frozen at send time
  • It's the default way to share a dashboard: a secret address you send to whoever needs it.
  • It's noindex on purpose — the customer's dashboard (revenue, portfolio) can't end up in a search engine. The site's robots.txt tells search engines not to even enter /d.
  • It serves a snapshot (cheap read) — it generates no processing cost for the owner, and that's why it stays online even if the subscription is past due (it's not subject to the subscription check).
  • It has an abuse brake: too many hits on the same address within a minute get a friendly "too many requests" page.

The link shows the published version of the dashboard, on a page without the system's menus. The visitor:

  • filters, switches pages, clicks a chart to filter the others, and uses the right-click menu of each chart (Focus mode (full screen), See records (underlying rows), Export this visual as CSV, Save as image) — all explained in Read a dashboard;
  • turns on Auto refresh (above the dashboard), downloads the page with Save as image, or uses Print;
  • on phone and tablet, sees the layout the owner arranged for that device (without its own layout, the phone stacks the charts and the tablet uses the desktop layout), and opens the chart tooltip by tapping it.

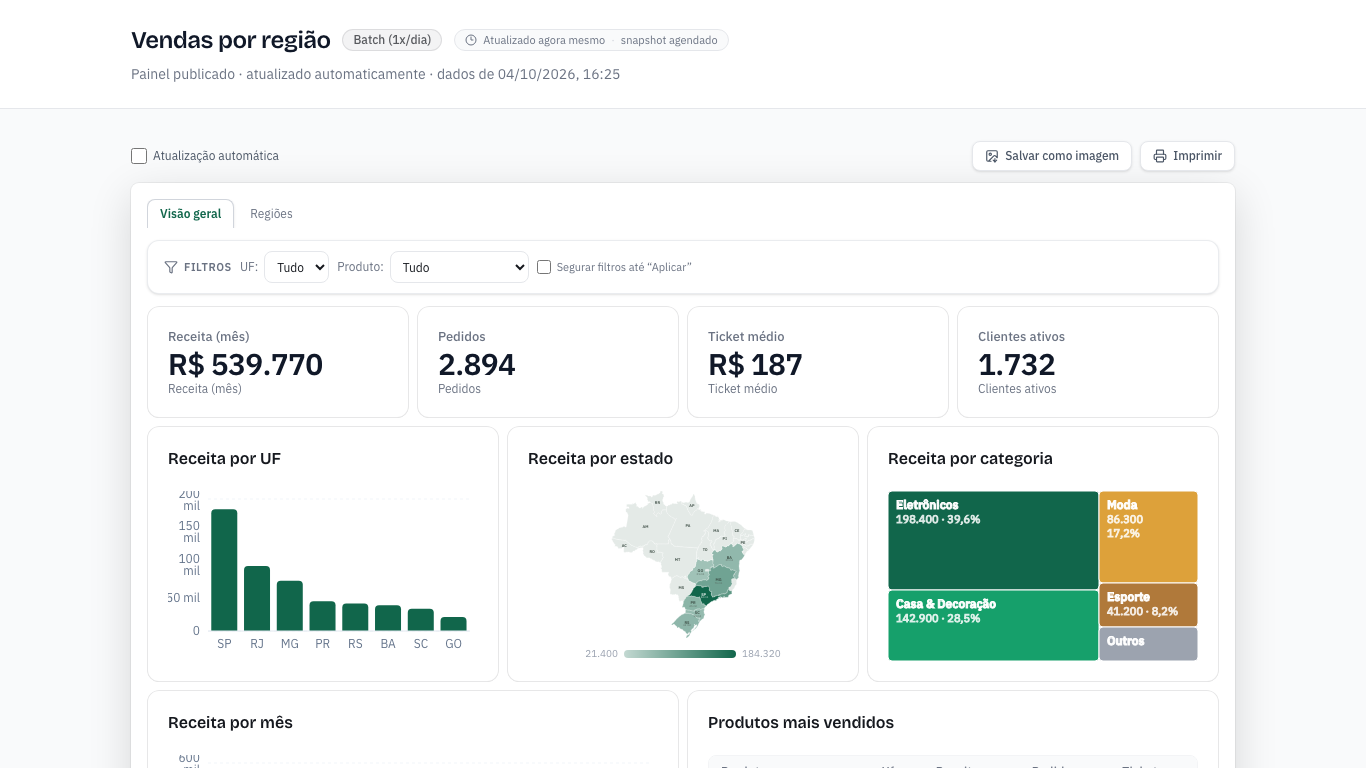

The secret link opened without login: dashboard name, refresh badge, Auto refresh, Save as image, Print, and the dashboard sheet

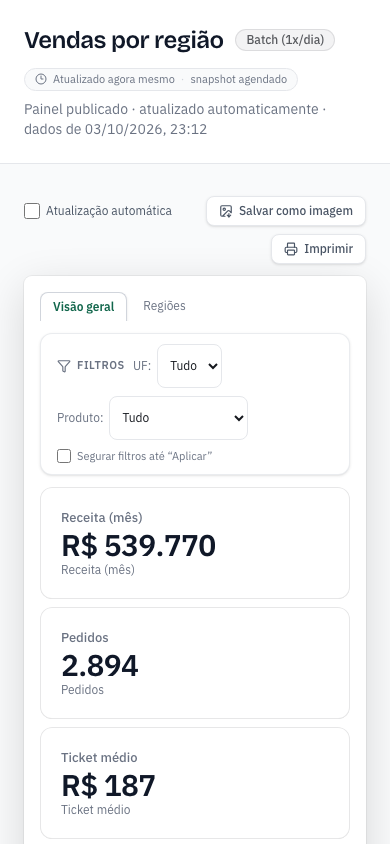

The same link opened on a phone, with the dashboard's phone layout

What comes after the ? in the address changes how the dashboard opens. They can be combined with &.

OptionWhat it does
?f=…Pre-filtered link. Keeps the filters, cross-filtering, and the open page. You don't need to write it by hand: apply the filters on the dashboard and copy the address from the browser bar.
?tv=1TV mode: full screen, no menus, the sheet filling the 16:9 screen, pages that rotate, and data that refreshes on its own. It's the TV link on the Share screen.
tvIntervalo=NIn TV mode, seconds on each page (from 10 to 600; default 30).
tvRefresh=NIn TV mode, refresh the data every N seconds (minimum 60).
tvRelogio=1 or 0In TV mode, shows or hides the clock and date in the corner.

Example: /d/abc123?f=…&tv=1&tvIntervalo=45 opens the big screen already filtered, starting on the page that was open when the link was copied. Details in TV link — the dashboard on the big screen.

The same options work on /painel/<slug>. The embed (/d/embed/…) accepts the filters, but not TV mode.

/painel/<slug> — public dashboard on the open web#

  • It's the opposite decision to the private link: indexable content, made to publicize (a city hall publishing public works, an association publishing its accountability report).
  • It only exists when the owner explicitly turns on "Publish to the web" in Share. Until it's turned on, /painel/<slug> is a 404 — even for a dashboard that already has a private link.
  • When a dashboard is opened to the web, the canonical address becomes /painel/<slug>: opening the old /d/<slug> redirects there, so links already shared keep working without creating two indexable URLs for the same content. The redirect carries along what comes after the ? — a filtered link (?f=…) or a TV link (?tv=1) arrives intact.
  • The page shows the Public on the web badge and, in the footer, "Dashboard published on the web by its author — open content, free to share."
  • Why two addresses instead of a conditional index: true? robots.txt is a single file for the whole site and doesn't know which slug can be crawled. Allowing /d would make every private link crawlable — the opposite of what it exists to do. Two paths, each with a clear rule.

/r/<slug> — report snapshot (immutable)#

  • It's the public picture of a report: immutable. It renders the result frozen at send time and never re-queries the datalake — "the number sent is the number on the page".
  • It's the same source as the PDF: the PDF worker renders /r/<slug>?print=1, with header, footer, and page numbers. The confidentiality stamp appears on screen and on every printed page.
  • It's noindex and for anonymous visitors: since there's no session, PII is always masked (the stored snapshot is the owner's view, already sanitized).
  • Where to find it: on the report screen (AI → Reports ▸ the report), under Latest snapshot: and in the Snapshot column of the Run history (open link). See Reports screens.

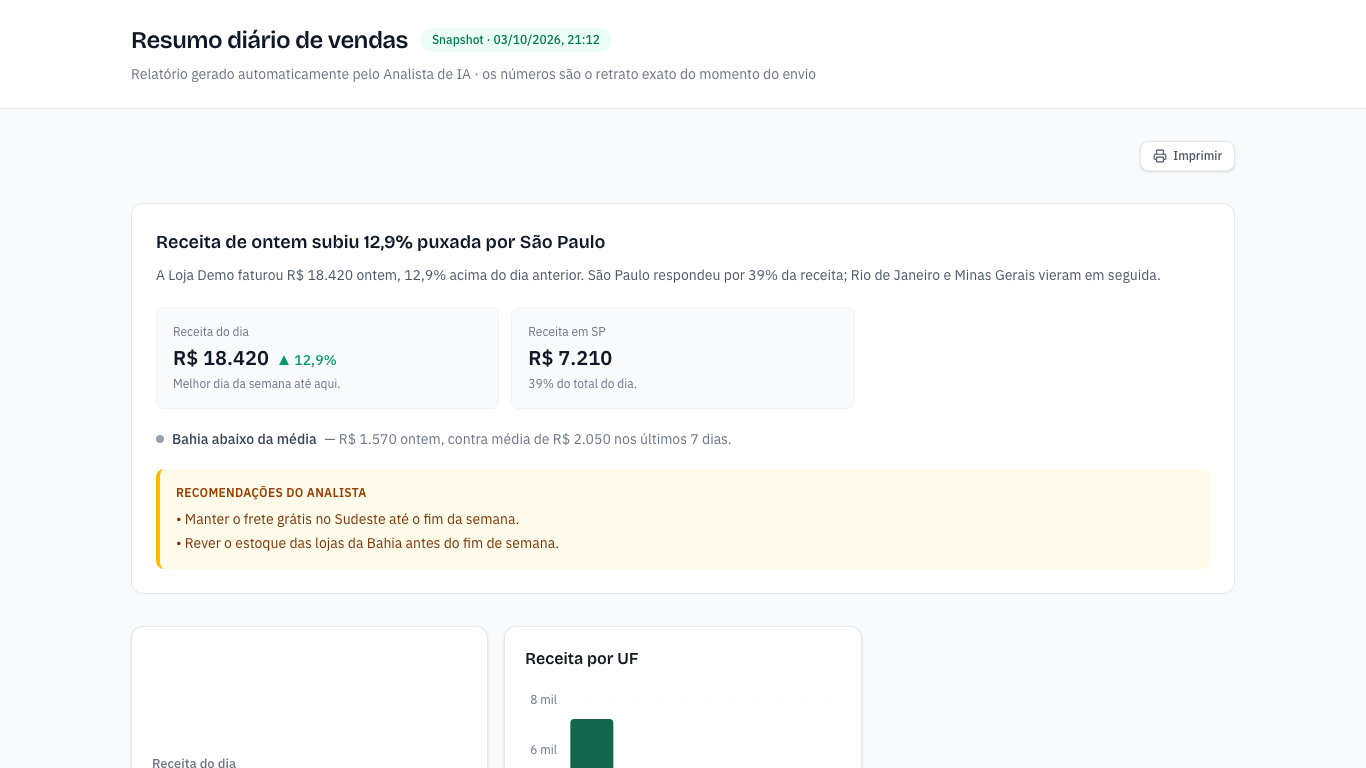

Public snapshot of a report at /r/…: title, the AI Analyst's narrative, and the numbers frozen at send time

Turning off exposure#

/painel and /d go through an exposure canary (public dashboard and embed): turning it off (globally or per workspace) takes down the public dashboard before loading any data — including before the redirect to /painel. It's orthogonal to non-payment: it's not the subscription check, it's the exposure brake.

How to choose#

  • Sending it to someone specific? Use /d (private link).
  • Leaving it on a TV? Use the TV link (/d/<slug>?tv=1).
  • Publishing it to the world? Turn on "Publish to the web" → /painel.
  • Sending a report with a locked number / generating a PDF? That's /r (snapshot).

Plan and permissions#

  • Turning sharing on/off requires admin/owner.
  • Embed and open/public web only work on the domains in the allowlist set by the admin.

Security#

  • Private link and snapshot are noindex; the open web is an explicit opt-in.
  • Public snapshots are born masked (PII); email subscriptions apply RLS per recipient.

Common errors#

SymptomLikely causeWhat to do
/painel/<slug> returns 404"Publish to the web" wasn't turned onturn it on in Share (the default is private)
Dashboard "temporarily unavailable"public dashboard and embed kill switch onexposure paused; try again later
"Too many requests in a row"per-address abuse brakewait a moment and reload
Snapshot with an "old" numberit's immutable by designgenerate a new send/report to update it
Filtered link opened without the filterthe address was copied before applying the filters, or cut off in the middleapply the filters and copy the whole address again
The TV opened as a regular pagethe ?tv=1 was missingcopy the TV link in Share
